Specification
| Video Memory Specifications | ||
| Type | GDDR6X | |
| Size | 12GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) | |
| Memory Clock | 21 Gbps | |
| BUS Type | 192 bit | |
| Memory Interface | PCI-E 4.0 | |
| CUDA Cores | 5888 | |
| Interface | ||
| Display Port | DisplayPort 1.4 x3 | |
| HDMI | HDMI 2.1 x1 | |
| Power Specifications | ||
| Connectors | 16 pinx1 | |
| Recommended PSU | 650W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=261 W=126 H=50 mm | |
| Others | PCB Form: ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 years | |
Description

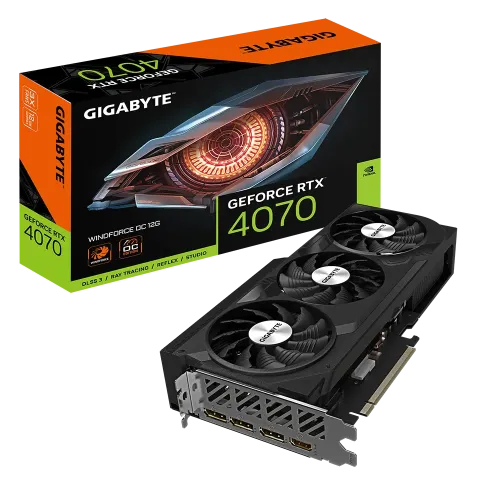

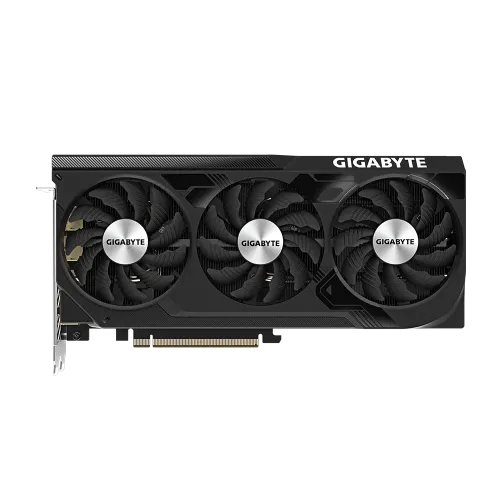

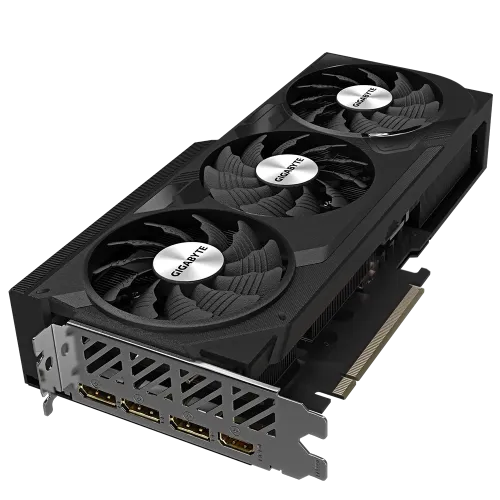

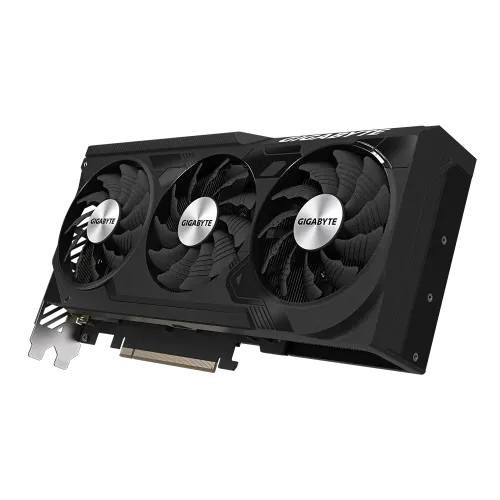

GIGABYTE GeForce RTX 4070 WINDFORCE OC 12GB GDDR6X Graphics Card
The GIGABYTE GeForce RTX 4070 WINDFORCE OC graphics card is intended for gaming and demanding multimedia applications. It is powered by NVIDIA DLSS 3, an ultra-efficient Ada Lovelace arch, and full ray tracing. It has Fourth Generation Tensor Cores for up to 4x performance with DLSS 3 vs. brute-force rendering. It has a core clock speed of 2505 MHz, 5888 CUDA cores, and 12 GB of GDDR6X memory with a 21 Gbps clock speed and a 192-bit memory bus. The card is PCI-E 4.0 compliant and can support digital resolutions of up to 7680×4320. There are also three DisplayPort 1.4 outputs and one HDMI 2.1 output. It has 4 multi-view capabilities and measures 336mm in length, 140mm in width, and 58mm in height. It has an ATX PCB form factor and is compatible with DirectX 12 Ultimate and OpenGL 4.6. A recommended power supply of 650W is required, and the card has a single 16-pin power connector.
Windforce Cooling System
The GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G is equipped with the WINDFORCE cooling system, which includes three 100mm unique blade fans, alternate spinning, seven composite copper heat pipes, a vapor chamber that directly touches the GPU, three 3D active fans, and screen cooling to provide high-efficiency heat dissipation. Alternate spinning reduces turbulence caused by adjacent fans while increasing airflow pressure. When the GPU is in a low-load or low-power game, the 3D Active Fan provides semi-passive cooling, and the fans turn off. The triangular fan edge spills the airflow, which is then guided smoothly through the 3D stripe curve on the fan surface.
RGB Fusion
The GIGABYTE GeForce RTX 4070 WINDFORCE OC 12GB Graphics Card comes with the legendary three-ring lighting, which provides excellent visual enjoyment. You have the option of selecting any lighting effect or synchronizing with other devices.
It’s the best Graphics Card for you in 2024/2025.
